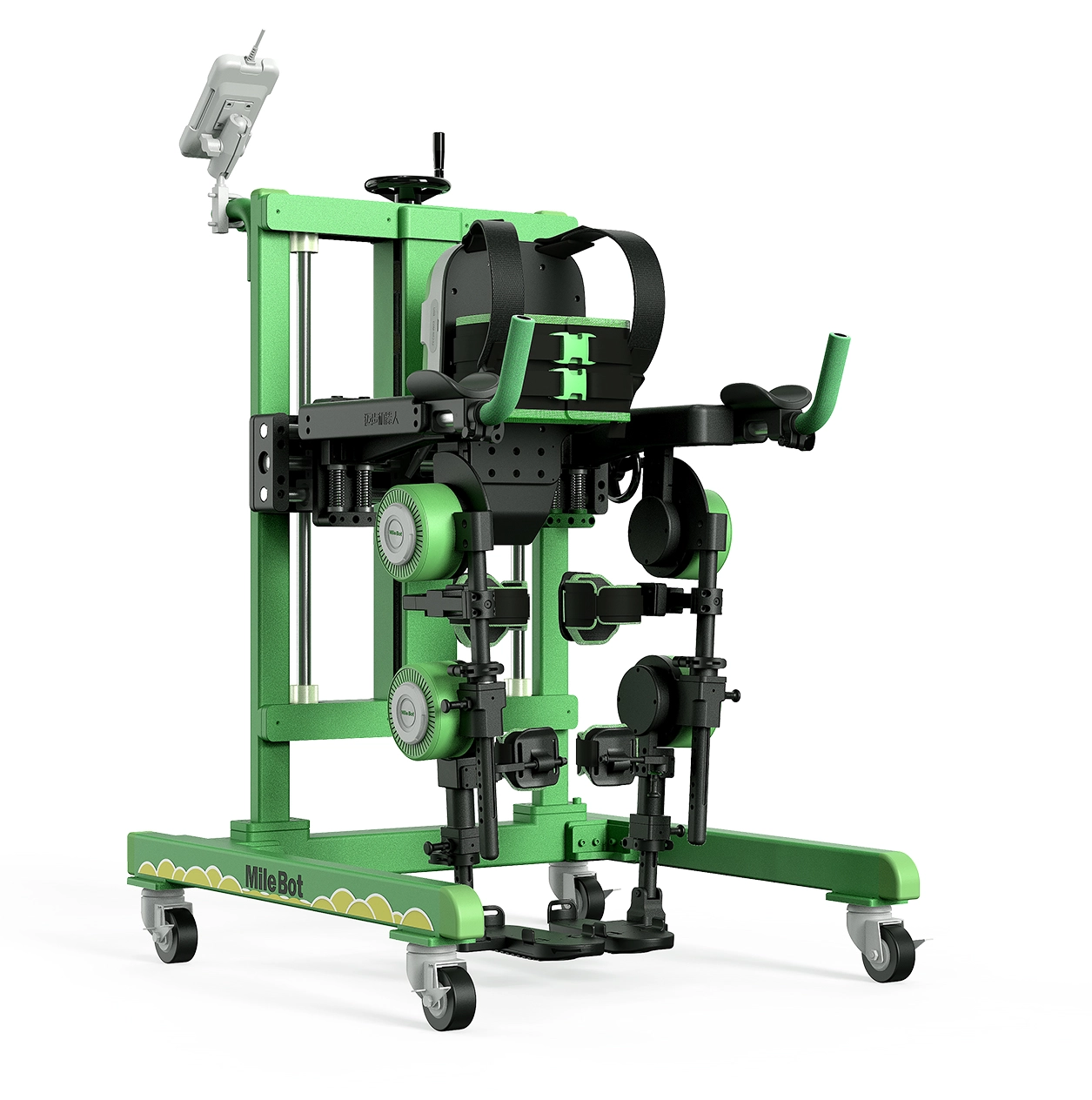

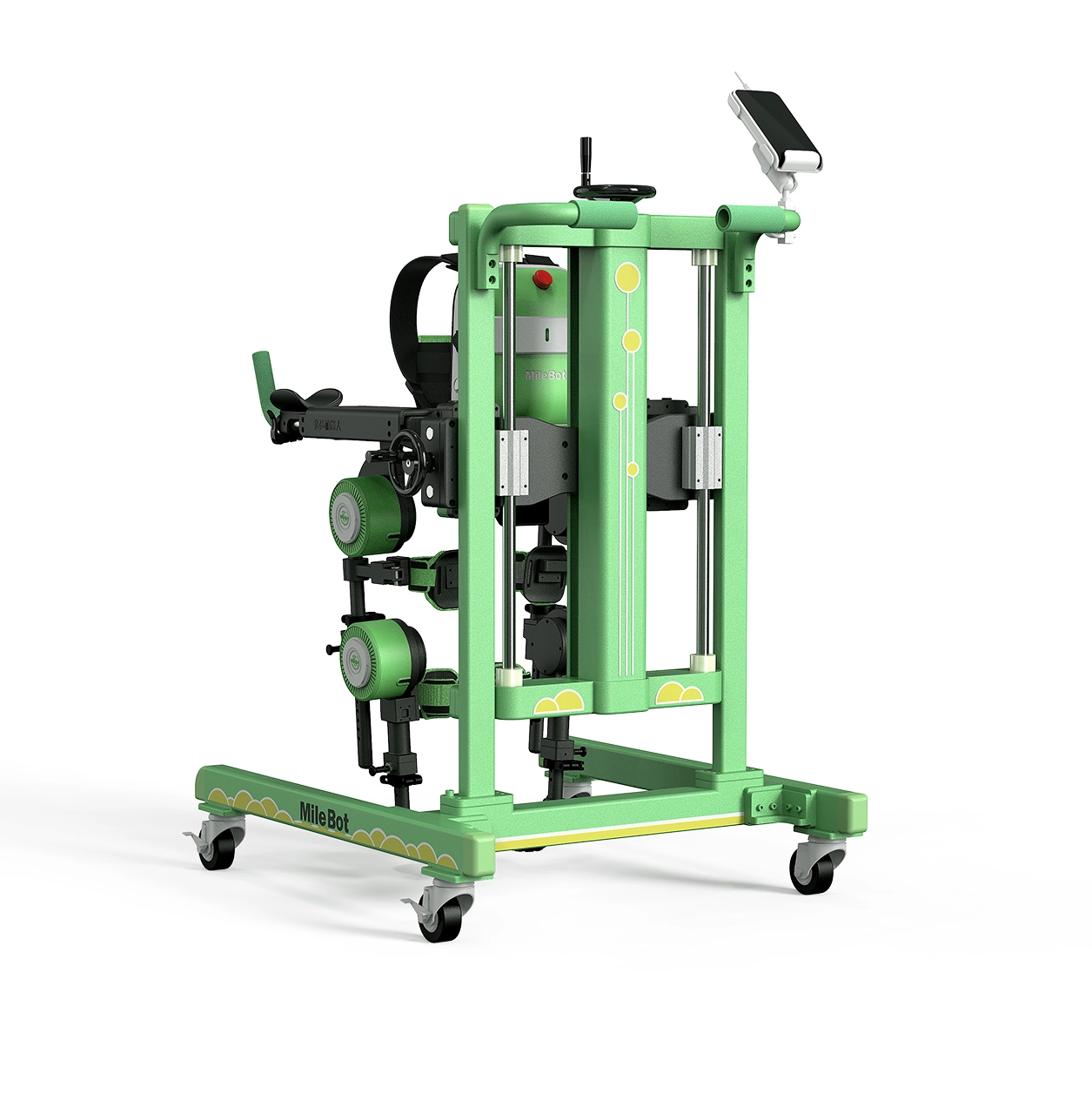

RELAX C series of products are designed for child patients whose height are from 90cm to 150cm. This type of medical rehabilitation robot has the function of doing rehabilitative trainning for children under preset programs. It helps children to rehabilitate themselves when they have locomotor dysfuntion.
Models | C1 | C2 | C3 | |
Functions | Training Mode Leg Swing Training Mode Single Leg Step Mode Continuous Step Mode | Leg Swing Training Mode Single Leg Step Mode Continuous Step Mode | Training Mode | |
Seat and Electric Lift | Yes | N/A | N/A | |
Manual Lift (without seat) | N/A | Yes | Yes | |
List, legs, and armrest adjustment range | Waist width is adjustable in the same range | 280mm~375 mm，tolerance±10mm | ||
Adjusting the range of the thigh length | 200mm~380 mm，tolerance±10mm | |||
Cf length adjustable range | 215mm~320mm，tolerance±10mm | |||
Armrail height adjustable range | 540mm~1045mm，tolerance±10mm | |||
Armrail length adjustable range | 400mm~500mm，tolerance±10mm | |||
Waist depth is adjustable in the same range | 100mm~160mm，tolerance±10mm | |||
Joint angle and range of motion | Range of motion of the sagittal plane of the hip joint | -30°~ +90°，tolerance±5° | ||
Range of motion of the sagittal knee joint | 0°~ +100°，tolerance±5° | |||
Range of motion in the sagittal plane of the ankle joint | 0°~ +30°，tolerance±5° | |||
Battery usage time | >8h | |||
Battery charging time | ≤5h | |||
Electrical safety | GB 9706.1-2020，GB 24436-2009 | |||
Electromagnetic compatibility | YY 9706.102 | |||
Power supply adapter model number | CFY2526000 | |||
Input power supply | a.c.100-240V，50/60Hz | |||
Output power supply | d.c. 25.2V，6.0A | |||
Internal electric source | Rechargeable lithium-ion batteries d.c. 21.6V，23.1Ah | |||
1. Design with safe stand: the rehabilitation robot is equipped with a stand which can support patients and protect them from falling.
2. Comfortable trainning experience: the robot uses built-in compliant actuators to drive itself. It can produce flexible output to keep patients comfortable when they doing trainning.
3. Multiple mode options: the robot can provide serval trainning modes including continuous walking mode, single-step walking model and Leg Swing trainning mode, it can meet patients' demand in different rehabilitative stage.
4. Adjustable structure: the waist width and the length of thigh and calf are all adjustable. These adjustable parts keep patients safe and secure when they are trainning.

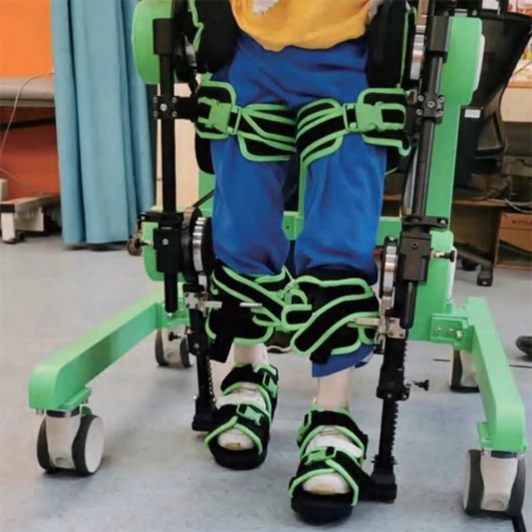

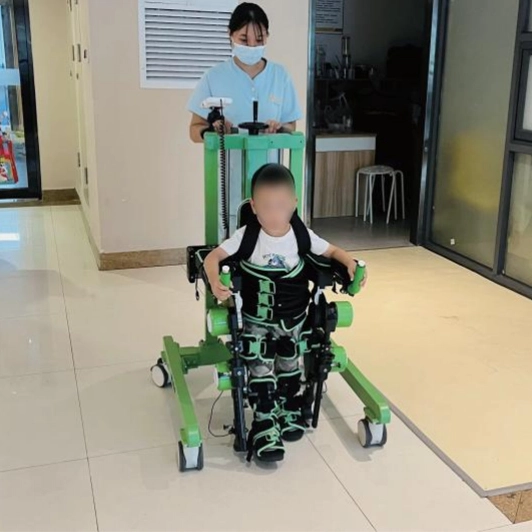

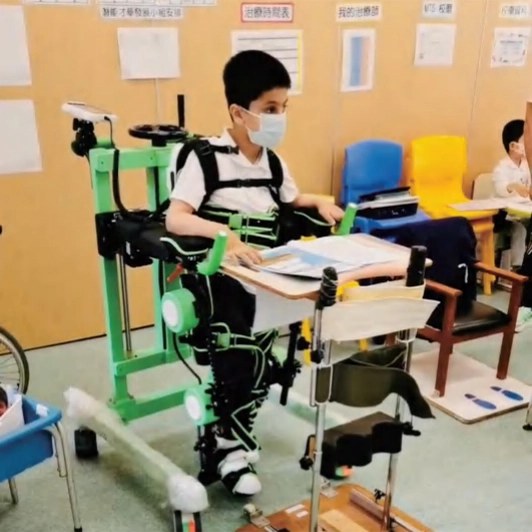

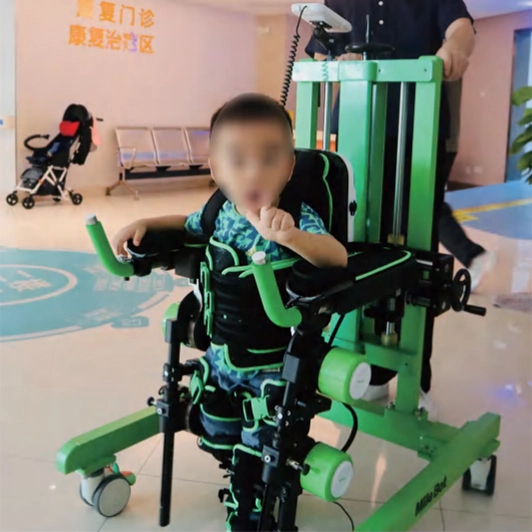

It is suitable for rehabilitation training for individuals with lower limb motor function disorders. It has already been used in schools such as the Hong Kong Christian Service's Pui Yi School,the Hong Kong Red Cross' Margaret Trench School, Haven of Hope Sunnyside School, and the Duchess of Kent Children's Hospital in Tai Hau Wan.
